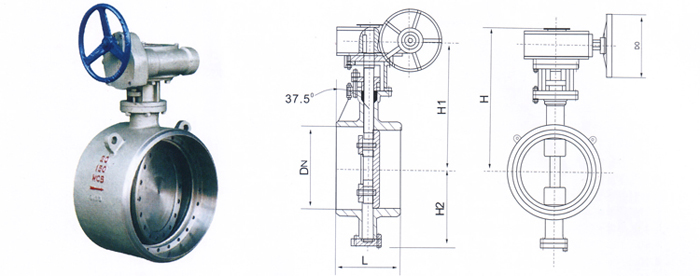

美标D363（H、W）对焊式硬密封蝶阀系列外形尺寸（C、P、R、V）
ANSI 150Lb
|
公称通径
|
L
|
Dn
|
d1
|
H1
|
H2
|
H
|
Do
|
近似重量（kg)
|
|
in
|
mm
|
|
3
|
76
|
114
|
89.1
|
78.1
|
186
|
90
|
230
|
160
|
27
|
|
4
|
100
|
127
|
114.3
|
102.3
|
195
|
100
|
239
|
160
|
34
|
|
5
|
125
|
140
|
139.8
|
126.6
|
208
|
113
|
252
|
160
|
41
|
|
6
|
150
|
140
|
165.2
|
151
|
240
|
130
|
284
|
160
|
43
|
|
8
|
200
|
152
|
216.3
|
199.9
|
265
|
202
|
307
|
200
|
81
|
|
10
|
250
|
165
|
267.4
|
248.8
|
295
|
235
|
337
|
200
|
102
|
|
12
|
300
|
178
|
318.5
|
297.9
|
340
|
280
|
392
|
250
|
132
|
|
14
|
350
|
190
|
355.6
|
333.4
|
383
|
315
|
435
|
300
|
164
|
|
16
|
400
|
216
|
406.4
|
381.0
|
427
|
355
|
481
|
400
|
193
|
|
18
|
450
|
222
|
457.2
|
428.6
|
467
|
370
|
521
|
400
|
238
|
|
20
|
500
|
229
|
508
|
477.8
|
499
|
406
|
568
|
450
|
302
|
|
24
|
600
|
267
|
609.6
|
574.8
|
618
|
464
|
689
|
500
|
457
|
|
28
|
700
|
393
|
|
|
745
|
560
|
903
|
350＊
|
810
|
|
30
|
800
|
318
|
|
|
809
|
630
|
967
|
350＊
|
1093
|
|
36
|
900
|
330
|
|
|
873
|
697
|
1030
|
350＊
|
1410
|
|
42
|
1050
|
410
|
|
|
964
|
777
|
1122
|
350＊
|
1870
|
|
ANSI 300Lb
|
|
公称通径
|
L
|
Dn
|
d1
|
H1
|
H2
|
H
|
Do
|
近似重量（kg)
|
|
in
|
mm
|
|
3
|
76
|
180
|
89.1
|
78.1
|
242
|
108
|
286
|
160
|
35
|
|
4
|
100
|
190
|
114.3
|
102.3
|
204
|
108
|
248
|
160
|
38
|
|
5
|
125
|
200
|
139.8
|
126.6
|
214
|
120
|
258
|
160
|
50
|
|
6
|
150
|
210
|
165.2
|
151
|
259
|
135
|
301
|
200
|
45
|
|
8
|
200
|
230
|
216.3
|
199.9
|
276
|
202
|
318
|
200
|
100
|
|
10
|
250
|
250
|
267.4
|
248.8
|
313
|
235
|
365
|
250
|
135
|
|
12
|
300
|
270
|
318.5
|
297.9
|
363
|
280
|
415
|
300
|
260
|
|
14
|
350
|
290
|
355.6
|
333.4
|
406
|
315
|
458
|
400
|
380
|
|
16
|
400
|
310
|
406.4
|
381
|
441
|
355
|
510
|
450
|
320
|
|
18
|
450
|
330
|
457.2
|
428.6
|
523
|
370
|
591
|
500
|
500
|
|
20
|
500
|
350
|
508
|
477.8
|
602
|
420
|
740
|
350*
|
550
|
|
24
|
600
|
390
|
609.6
|
574.8
|
695
|
490
|
833
|
350*
|
900
|
