■ GDC-5型－电磁高真空挡板阀

  ■ GDC-5型电磁高真空挡板阀是连接在真空管路上，用来接通或截止真空系统中的气流，或作充气阀用。当通电时将P、A端管路接通、断电时切断P、A端管路，保持P端真空系统的真空度。适用介质为纯净空气和非腐蚀性气体。

■ GDC-5
Electro High Vacuum Flapper Valve

  ■ GDC-5 electro high vacuum flapper valve is mounted in vacuum pipeline to put through or cut off the airflow in vacuum system, or used as a charging vale. When power is connected, pipes at P and A will be put through, and when power is disconnected, pipes at P and A will be cut off, to keep the vacuum system at P vacuum. Applicable medium can be pure air and noncorrosive gases.

■ 主要技术性能
Main Technical Performance

公称通径：Nominal Diameter	5mm
适用范围：Applicability	105～1.3×10-4Pa
阀门漏率：Valve Leak Rate	≤1.3×10-4Pa.L/S.
适用温度：Applicable Temperature	-30～+50℃
线围温升：Coil Temperature Rise	≤65℃
电源电压：Mains Voltage	220V/50Hz
安装方向：Mounting Direction	垂直或水平

CONSTRUCTION FIGHTS(mm)

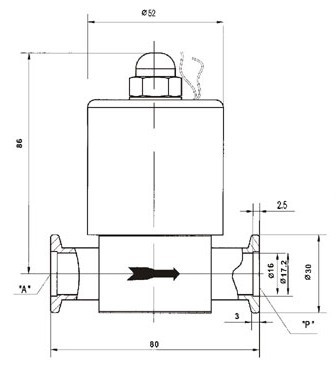

■ 外形及连接尺寸(mm)(GB4982)
Overall and Connection Dimensions(mm)
